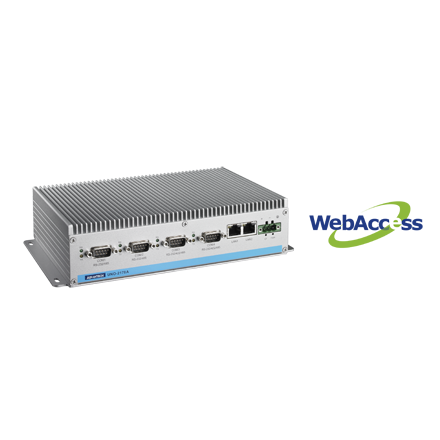

WA-UNO2178
Intel? Atom? D510 Compact SCADA Server with 600/5,000 Tags WebAccess
Main Features
  • Bundled with Advantech WebAccess, browser based HMI/SCADA software
  • Onboard Intel Atom D510 processors
  • 2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
  • Built-in Windows® 7 Embedded
  • Onboard system status LED indicators
  • Front-accessible CF slot
  • Supports Boot from LAN function
  • 2 x Mini PCIe slots with 1 x SIM slot support
  • Fanless design with no internal cabling
  • Isolation between chassis and power ground
  • Supports wide operating temperatures from - 10 ~ 70°C
  • IP40 ingress protection
  • Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion
  • Supports 8 x COM ports
  • Supports arbitrary baud rates
     數據表(PDF)    技術資料下載
  規格表
　 WA-UNO2178-C50HE WA-UNO2178-C600E WA-UNO2178-E50HE WA-UNO2178-E600E WA-UNO2178-
T50HE		 WA-UNO2178-
T600E
Dashboard Cross Browser and Platform No No No No No No
Number of Built-in Widget No No No No No No
Open Widget Interface No No No No No No
Graphics Multi-touch Gesture Yes Yes Yes Yes Yes Yes
Group Trend Log Alarm Groups per SCADA 9999 9999 9999 9999 9999 9999
Number of data logging Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2
I/O Interface LAN 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)
USB 6 x USB 2.0 6 x USB 2.0 6 x USB 2.0 6 x USB 2.0 6 x USB 2.0 6 x USB 2.0
Open Connectivity BACnet Server No No No No No No
DDE Server Yes Yes Yes Yes Yes Yes
Modbus Server Yes Yes Yes Yes Yes Yes
ODBC and SQL Query Yes Yes Yes Yes Yes Yes
OPC DA/UA Server Yes Yes Yes Yes Yes Yes
Others Support IPv6 Yes Yes Yes Yes Yes Yes
WebAccess Express Yes Yes Yes Yes Yes Yes
Scheduler Device Loop Group 9999 9999 9999 9999 9999 9999
Equipment Group 9999 9999 9999 9999 9999 9999
Holiday Configuration Group 9999 9999 9999 9999 9999 9999
Scheduler Reservation Group 9999 9999 9999 9999 9999 9999
Time Zone Group 9999 9999 9999 9999 9999 9999
Web-enabled Integration Google Maps and GPS Location Tracking Yes Yes Yes Yes Yes Yes
I/O Interface Serial Ports 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6) 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6) 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6) 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6) 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6) 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)
General Certifications Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI
Dimensions 255 x 152 x 59 mm (10" x 6.0" x 2.3") 255 x 152 x 59 mm (10" x 6.0" x 2.3") 255 x 152 x 59 mm (10" x 6.0" x 2.3") 255 x 152 x 59 mm (10" x 6.0" x 2.3") 255 x 152 x 59 mm (10" x 6.0" x 2.3") 255 x 152 x 59 mm (10" x 6.0" x 2.3")
Enclosure Housing Aluminum + SECC Aluminum + SECC Aluminum + SECC Aluminum + SECC Aluminum + SECC Aluminum + SECC
Industrial Grounding Isolation between chassis and power ground Isolation between chassis and power ground Isolation between chassis and power ground Isolation between chassis and power ground Isolation between chassis and power ground Isolation between chassis and power ground
Mounting DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA
OS Support Windows 7 Embedded Windows 7 Embedded Windows 7 Embedded Windows 7 Embedded Windows 7 Embedded Windows 7 Embedded
Power Consumption 16 W (Typical) 16 W (Typical) 16 W (Typical) 16 W (Typical) 16 W (Typical) 16 W (Typical)
Power Requirement 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
System Design Fanless design with no internal cabling Fanless design with no internal cabling Fanless design with no internal cabling Fanless design with no internal cabling Fanless design with no internal cabling Fanless design with no internal cabling
System Hardware CPU Intel Atom D510 Dual Core 1.66 GHz Intel Atom D510 Dual Core 1.66 GHz Intel Atom D510 Dual Core 1.66 GHz Intel Atom D510 Dual Core 1.66 GHz Intel Atom D510 Dual Core 1.66 GHz Intel Atom D510 Dual Core 1.66 GHz
Display DB15 VGA connector up to 2048 x 1536 DB15 VGA connector up to 2048 x 1536 DB15 VGA connector up to 2048 x 1536 DB15 VGA connector up to 2048 x 1536 DB15 VGA connector up to 2048 x 1536 DB15 VGA connector up to 2048 x 1536
Indicators LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
Keyboard/Mouse Ports 1 x PS/2 1 x PS/2 1 x PS/2 1 x PS/2 1 x PS/2 1 x PS/2
Memory 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in
Storage 2.5" SATA , 1TB 5400RPM 2.5" SATA , 1TB 5400RPM 2.5" SATA , 1TB 5400RPM 2.5" SATA , 1TB 5400RPM 2.5" SATA , 1TB 5400RPM 2.5" SATA , 1TB 5400RPM
Processor System Watchdog Timer 1~255 sec (System) 1~255 sec (System) 1~255 sec (System) 1~255 sec (System) 1~255 sec (System) 1~255 sec (System)
WebAccess Version 8.0 Professional Action Logs 5000 5000 5000 5000 5000 5000
Alarm Logs 5000 5000 5000 5000 5000 5000
Graphics Unlimited Number of Graphic Pages, Global Tag Source Unlimited Number of Graphic Pages, Global Tag Source Unlimited Number of Graphic Pages, Global Tag Source Unlimited Number of Graphic Pages, Global Tag Source Unlimited Number of Graphic Pages, Global Tag Source Unlimited Number of Graphic Pages, Global Tag Source
I/O Tag Number 600/5000 600/5000 600/5000 600/5000 600/5000 600/5000
Internal Tag Number 600/5000 600/5000 600/5000 600/5000 600/5000 600/5000
Number of Data Logging Number of I/O Tags License x 2 Number of I/O Tags License x 2 Number of I/O Tags License x 2 Number of I/O Tags License x 2 Number of I/O Tags License x 2 Number of I/O Tags License x 2
Others SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy
Web Client 1024 1024 1024 1024 1024 1024
