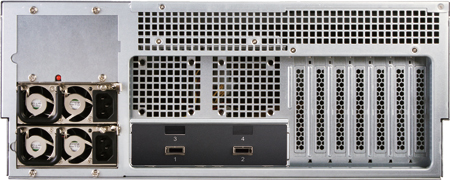

ASR-1400
4U 24-bay Reliable Disk Expansion Enclosure to Fit Industrial Applications
Main Features
  • Supports 24x Hot-swap 3.5'' SATA/SAS 6Gb/s drives
  • high efficiency(80+) redundant power supplies
  • two 6 Gb/s SAS host ports, optimal performance for bandwidth-demanding applications
  • SES Enclosure Management and Smart Fan control
     數據表(PDF)    技術資料下載
  規格表
ASR-1400-24A1E
Environment Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Mechanical Dimension 699 x 432 x 176 (mm)
Weight 41 kg (without hard drives)
Miscellaneous LED Indicators Power Status, System Fail
Power Supply Output Wattage 875W Redundant Power
System Drive Type SATA/SAS 6Gb/s or 3Gb/s
Form Factor 4U-24Bay
Number of Drives 24-Bays (2.5"/3.5")
SAS Expansion Port 2 x 6Gb/s SAS 4x wide ports
Smart Fan Control Yes (smart fan control for both cpu & sys fan)
