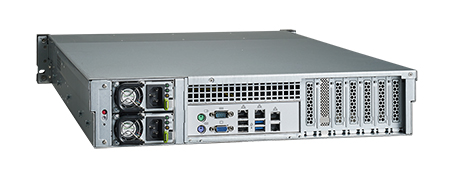

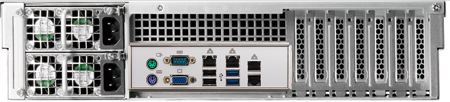

ASR-3272
2U 12-bay Storage Appliance with Reliable Data Protection and Backup Solution
Main Features
  • Supports Intel® Xeon® E3-1200/E3-1200 v2 series up to 4 cores/8 threads
  • Supports DDR3-1333/1600 MHz(ECC) U-DIMM up to 32 GB
  • Supports 12x Hot-swap 3.5" & 2.5" SATA/SAS 6Gb/s drives
  • Advanced Raid Feature by LSISAS2108 chip
  • Remote Management with Intel AMT
  • Support Disk RAID 0, 1, 5, 6, 10, 50, 60
  • BBU option for data protection
     數據表(PDF)    技術資料下載
  規格表
　 ASR-3272-12A1E ASR-3272E-12A1E ASR-3272W-12A1E
Form Factor Form Factor 2U 12-Bay 2U 12-Bay 2U 12-Bay
Processor System CPU LGA 1155 Xeon 1200V2 or 3rd Generation Core i3 processor LGA 1155 Xeon 1200V2 or 3rd Generation Core i3 processor LGA 1155 Xeon 1200V2 or 3rd Generation Core i3 processor
Chipset Intel C216 Intel C216 Intel C216
Disk Drive Bay 3.5"/2.5" Front-Accessible 12 12 12
Front I/O Interface USB2.0 2 1 1
Rear I/O Interface USB3.0 2 2 2
Power Supply Input Range AC 115 ~ 230 V (full range) AC 100 V ~ 240 V AC 100 V ~ 240 V
Physical Characteristics Dimensions (W x H x D) 482 x 177 x 657 mm (19'' x 7'' x 26'') 699 x 432 x 88 (mm) 699 x 432 x 88 (mm)
Environment Operational Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Miscellaneous LED Indicators Power, HDD Power Status, System Fail, LAN LED Power Status, System Fail, LAN LED
Value-added JBOD Expansion Max. 60 HDDs 60 HDDs 60 HDDs
