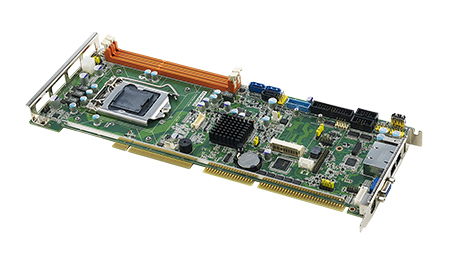

PCA-6028
LGA1150 Intel? Core? i7/i5/i3/Pentium SBC with VGA/DVI/Dual GbE LAN
Main Features
  • Supports Intel® Core™ i7/i5/i3/Pentium LGA1150 processors with H81
  • Dual Channel (Non-ECC) DDR3 1333/1600 up to 16 GB
  • Supports USB 3.0, SATA3.0
  • Dual Display with VGA and DVI-D(optional)
  • Supports Advantech LPC modules.
  • Supports SUSIAccess and Embedded Software APIs
     數據表(PDF)    技術資料下載
  規格表
　 　 PCA-6028G2-00A1E PCA-6028VG-00A1E
Processor System CPU Intel Core i3/i5/i7 Intel Core i3/i5/i7
Frequency Up to 3.1 GHz Up to 3.1 GHz
L3 Cache 8 MB 8 MB
BIOS AMI 128Mbit SPI Flash AMI 128Mbit SPI Flash
Chipset Intel H81 Intel H81
Integrated Graphics Yes Yes
Memory Capacity Up to 16 GB Up to 16 GB
ECC Support - -
Socket 2 x 240-pin DDR3 2 x 240-pin DDR3
Technology Dual Channel (Non-ECC) DDR3 1333/1600 Dual Channel (Non-ECC) DDR3 1333/1600
Ethernet Connector 2 x RJ45 1 x RJ45
Controller LAN1: Intel I217V LAN2: Intel I211 Intel I217V
Speed 10/100/1000 Mbps 10/100/1000 Mbps

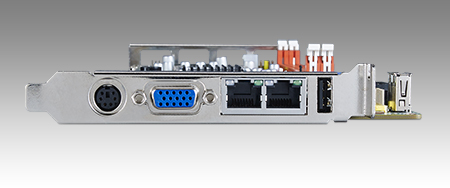

Rear I/O Interface Ethernet 2 1
PS/2 1 (for mouse and keyboard, a Y cable is included in the package) 1 (for mouse and keyboard, a Y cable is included in the package)
USB2.0 1 -
VGA 1 1
WatchDog Timer Output System Reset System Reset
Interval Programmable 1~255 sec Programmable 1~255 sec
Power Requirement Voltage +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Current 0.32A/1.92A/0A/0.06A/0A/0A 0.32A/1.92A/0A/0.06A/0A/0A
Environment Non-Operational Temperature -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Physical Characteristics Dimensions (LxW) 338 x 122 mm (13.3" x 4.8") 338 x 122 mm (13.3" x 4.8")
Form Factor Form Factor PICMG1.0 PICMG1.0
Display Controller Intel HD graphics Integrated Intel HD graphics Integrated
Display Interface VGA: Up to 2048 x 1536 DVI: Up to 1920 x 1200 VGA: Up to 2048 x 1536
Multiple Display Dual Single
I/O COM Port 2 x RS232 2 x RS232
GPIO 8-bit 8-bit
LPT 1 1
PS/2 Keyboard/Mouse 1 1
SATA 1 x SATA2.0/2 x SATA3.0/1 x mSATA 1 x SATA2.0/2 x SATA3.0/1 x mSATA
System Fan 1 1
USB2.0 8 7
USB3.0 2 2
Management Solution Out of band remote management AMT AMT
Certification EMC CE, FCC CE, FCC
