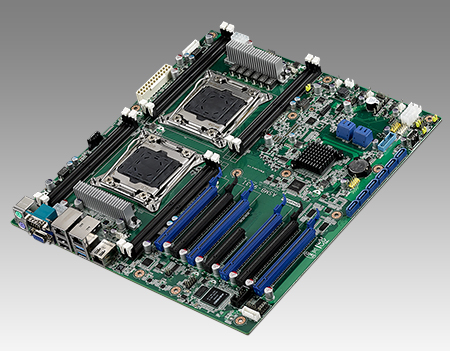

ASMB-923I
Dual LGA 2011-R3 Intel Xeon? E5-2600v3 EATX Server Board with DDR4, 4 PCIe x16+2 PCIe x8(Gen 3.0), 4 USB 3.0
Main Features
  • 0 ~ 40° C ambient operation temperature range
  • Four PCIe x16 slots (Gen3) + two PCIe x8 slots (Gen3.0) and one PCie x4 (Gen2.0)
  • DDR4 2133 MHz RDIMM up to 256 GB
  • EATX Server Board with dual Xeon® E5-2600(v3) processor, 8 DIMMs 256 GB memory capacity
     數據表(PDF)    技術資料下載
  規格表
　 　 ASMB-923-00A1E ASMB-923I-00A1E
Form Factor Form Factor EATX EATX
Processor System CPU Intel Xeon E5-2600 v3 series (LGA2011-R3 socket) Intel Xeon E5-2600 v3 series (LGA2011-R3 socket)
CPU TDP Up to 160 W Up to 160 W
Frequency Up to 3.1 GHz Up to 3.1 GHz
Core Number Up to 14 Up to 14
L3 Cache 15-45 MB 15-45 MB
BIOS AMI EFI 128 Mbit AMI EFI 128 Mbit
Chipset Intel C612 Intel C612
Integrated Graphics - -
DMI 20Gb/s 20Gb/s
QPI 9.6 GT/s 9.6 GT/s
Memory Technology DDR4 2133 MHz DDR4 2133 MHz
Capacity Up to 256 GB Up to 256 GB
ECC Support Yes Yes
Socket 8 x 288-pin DIMM 8 x 288-pin DIMM
REG Support YES YES
Display Controller Aspeed AST1400/2400 Aspeed AST1400/2400
Graphic Memory Onboard memory 64MB Onboard memory 64MB
Multiple Display - -
Display Interface VGA: Up to1920 x 1200 VGA: Up to1920 x 1200
Expansion Interface PCI Express x 16 4 (Gen3) 4 (Gen3)
PCI Express x 8 2 (Gen3) 2 (Gen3)
PCI Express x 4 1 (Gen2) 1 (Gen2)
PCI Express x 1 - -
PCI - -
LPC 1 1
SMBus 1 1
PME - -
Ethernet Controller LAN1: Intel I210; LAN2: Intel I210 LAN1: Intel I210; LAN2: Intel I210
Speed 10/100/1000 Mbps 10/100/1000 Mbps
Connector 2 x RJ45 2 x RJ45
WatchDog Timer Output System Reset System Reset
Interval Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min
I/O SATA 10 x SATA3 (SATA0-SATA5 and sSATA0-sSATA3 Supports software RAID 0, 1, 10 & 5) 10 x SATA3 (SATA0-SATA5 and sSATA0-sSATA3 Supports software RAID 0, 1, 10 & 5)
SAS Port - -
SAS controller - -
USB3.0 2 2
USB2.0 5 5
GPIO 8-bit 8-bit
LPT - -
COM Port 1 x RS232 1 x RS232
PS/2 Keyboard/Mouse - -
SPDIF - -
System Fan 3 3
Rear I/O Interface Display - -
LAN 2 2
USB3.0 2 2
USB2.0 2 2
COM 1 x RS232 1 x RS232
PS/2 1 1
DVI - -
Ethernet 2 2
VGA 1 1
Power Requirement Voltage +12V/+5V/+3.3V/+5Vsb/-12V +12V/+5V/+3.3V/+5Vsb/-12V
Current 17.42A/1.0A/1.69A/0.05A/0.01A 17.42A/1.0A/1.69A/0.05A/0.01A
Environment Operational Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Non-Operating Vibration 3.5 Grms 3.5 Grms
Physical Characteristics Dimensions (LxW) 304.8 x 330.2 mm (12" x 13") 304.8 x 330.2 mm (12" x 13")
Weight - -
Certification EMC CE, FCC CE, FCC
Management Solution Software SUSIAccess 2.1 SUSIAccess 2.1
Out of band remote management Realtek 8201EL Realtek 8201EL
