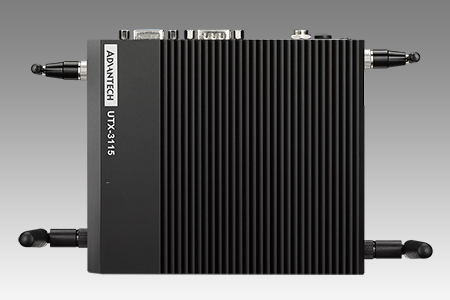

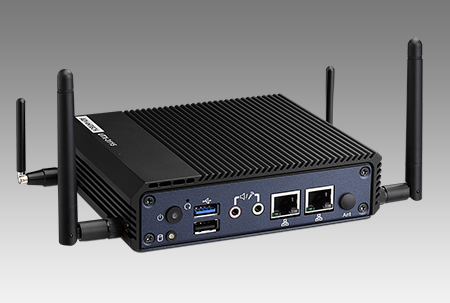

UTX-3115
Intel? Atom? E3826/E3815 with Dual Giga LAN Fanless Compact Box PC
Main Features
  • Intel® Atom™ Dual Core E3826 & E3815 processor
  • Palm-size form factor: 138.5(W) x 35.98(H) x 116.4(D) mm
  • Supports 1 x COM port, 1 x HDMI, 1 x micro HDMI, 1 x USB3.0 and 2 x USB 2.0 ports
  • Built-in 1 x Half size Mini PCIe expansion slot (i.e.: Wi-Fi module) and 1 x Full size Mini PCIe expansion slot for mSATA storage
  • Supports 1 2.5" HDD or SSD storage
  • Wide operating temperature -20 ~ 60° C support
  • Optional VESA / DIN-Rail / Wall mounts
  • Bundled with the Intel® Gateway Solutions for Internet of Things (IoT)
     數據表(PDF)    技術資料下載
  規格表
　
UTX-3115B-S6A1E
UTX-3115SA4P-S6A1E UTX-3115SA4-S6A1E
Processor CPU Intel ATOM E3826 Intel ATOM E3826 Intel ATOM E3826
Display VGA Up to 2560 x 1600 Up to 2560 x 1600 Up to 2560 x 1600
Multiple Display Dual Dual Dual
Ethernet Controller GbE1: Intel I210AT; GbE2:Realtek 8111G GbE1: Intel I210AT; GbE2:Realtek 8111G GbE1: Intel I210AT; GbE2:Realtek 8111G
Audio CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
I/O COM Port 1x RS-232 & 1x RS-422/485 1x RS-232 & 1x RS-422/485 1x RS-232 & 1x RS-422/485
Display LCD (TTL/LVDS/eDP) N/A N/A N/A
DDI (HDMI/DVI/DisplayPort) HDMI: 1920X1080P & Micro HDMI: 1920X1080P HDMI: 1920X1080P & Micro HDMI: 1920X1080P HDMI: 1920X1080P & Micro HDMI: 1920X1080P
Expansion Slots 1 F/S miniPCIE & 1H/S miniPCIE 1 F/S miniPCIE & 1H/S miniPCIE 1 F/S miniPCIE & 1H/S miniPCIE
